GL80N20AN
分享到:

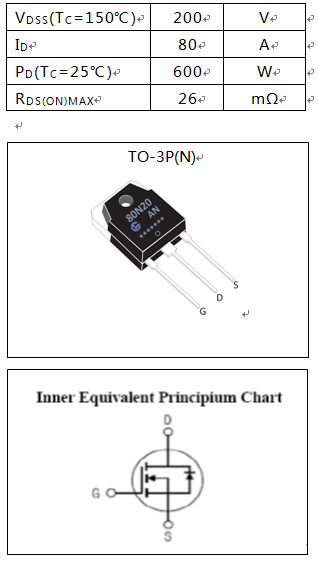

GL80N20AN

Vdss     200 V
Package     TO-3P(N)
Id     80 A
Rdson(typ)     26 mΩ
Rdson(max)     30 mΩ
产品详情


General Description:

GL80N20AN, the silicon N-channel Enhanced VDMOSFET, is obtained by the self-aligned planar Technology which reduce the conduction loss, improve switching performance and enhance the avalanche energy. The transistor can be used in various power switching circuit for system miniaturization and higher efficiency. The package form is TO-3P(N), which accords with the RoHS standard.




Features:

Fast Switching

ESD Improved Capability

Low Gate Charge

Low Reverse transfer capacitances

100% Single Pulse avalanche energy Test




Applications:

Power switch circuit of POWER


AbsoluteTc=25℃ unless otherwise specified):


Symbol
Parameter
Rating
Units
VDSS
Drain-to-Source Voltage
200
V
ID
Continuous Drain Current
80
A

Continuous Drain Current TC=100 °C
70
A
IDMa1
Pulsed Drain Current( pulse width limited by TJM)
225
A
VGS
Gate-to-Source Voltage
±30
V
EAS
Single Pulse Avalanche Energy
3500
mJ
EAra1
Avalanche Energy ,Repetitive
250
mJ
IAR a1
Avalanche Current
60
A
dv/dta2
Peak Diode Recovery dv/dt
5.0
V/ns
PD
Power Dissipation
600
W

Derating Factor above 25°C
4.8
W/
TJTstg
Operating Junction and Storage Temperature Range
15055 to 150
TL
Maximum Temperature for Soldering
300


Caution Stresses greater than those in the Absolute Maximum Ratings may cause permanent damage to the device



Thermal Characteristics


Symbol
Parameter
Rating
Units
RθJC
Thermal Resistance, Junction-to-Case
0.21
℃/ W
RθJA
Thermal Resistance, Junction-to-Ambient
40
℃/ W


Electrical CharacteristicsTc=25℃ unless otherwise specified):


OFF Characteristics






Symbol
Parameter
Test Conditions
Rating
Units





Min.
Typ.
Max.

VDSS
Drain to Source Breakdown Voltage
VGS=0V,ID=250µA
200
--
--
V
IDSS
Drain to Source Leakage Current
VDS=200V, VGS=0V,Ta=25
--
--
1.0
µA


VDS=160V, VGS=0V,Ta=125
--
--
100

IGSS(F)
Gate to Source Forward Leakage
VGS=+30V
--
--
100
nA
IGSS(R)
Gate to Source Reverse Leakage
VGS=-30V
--
--
-100
nA




ON Characteristics






Symbol
Parameter
Test Conditions
Rating
Units





Min.
Typ.
Max.

RDS(ON)
Drain-to-Source On-Resistance
VGS=10V,ID=40A
--
20
26
m
VGS(TH)
Gate Threshold Voltage
VDS=VGS,ID=250µA
2.0
--
4.0
V
gfs
Forward Trans conductance
VDS=15V,ID=40A
--
50
--
S
Pulse width<380μs; duty cycle<2%.









Dynamic Characteristics






Symbol
Parameter
Test Conditions
Rating
Units





Min.
Typ.
Max.

Ciss
Input Capacitance
VGS=0V VDS=25V
f=1.0MHz
--
7500
--
pF
Coss
Output Capacitance

--
880
--

Crss
Reverse Transfer Capacitance

--
180
--




Resistive Switching Characteristics






Symbol
Parameter
Test Conditions
Rating
Units





Min.
Typ.
Max.

td(ON)
Turn-on Delay Time
ID=40A,VDD=100V
VGS=10V,Rg=25
--
68
--
ns
tr
Rise Time

--
120
--

td(OFF)
Turn-Off Delay Time

--
485
--

tf
Fall Time

--
145
--

Qg
Total Gate Charge
ID=40A,VDD=100V
VGS=10V
--
140
--
nC
Qgs
Gate to Source Charge

--
22
--

Qgd
Gate to Drain (Miller)Charge

--
55
--




Source-Drain Diode Characteristics






Symbol
Parameter
Test Conditions
Rating
Units





Min.
Typ.
Max.

ISD
Continuous Source Current (Body Diode)

--
--
80
A
ISM
Maximum Pulsed Current (Body Diode)

--
--
225
A
VSD
Diode Forward Voltage
IS=80A,VGS=0V
--
--
1.5
V
trr
Reverse Recovery Time
IS=80A,Tj=25
dIF/dt=100A/μs,VGS=0V
--
485
--
ns
Qrr
Reverse Recovery Charge

--
4.8
--
uC


a1:Repetitive rating; pulse width limited by maximum junction temperature

a2:ISD=80A,di/dt≤100A/us,VDD≤BVDS, Start TJ=25℃

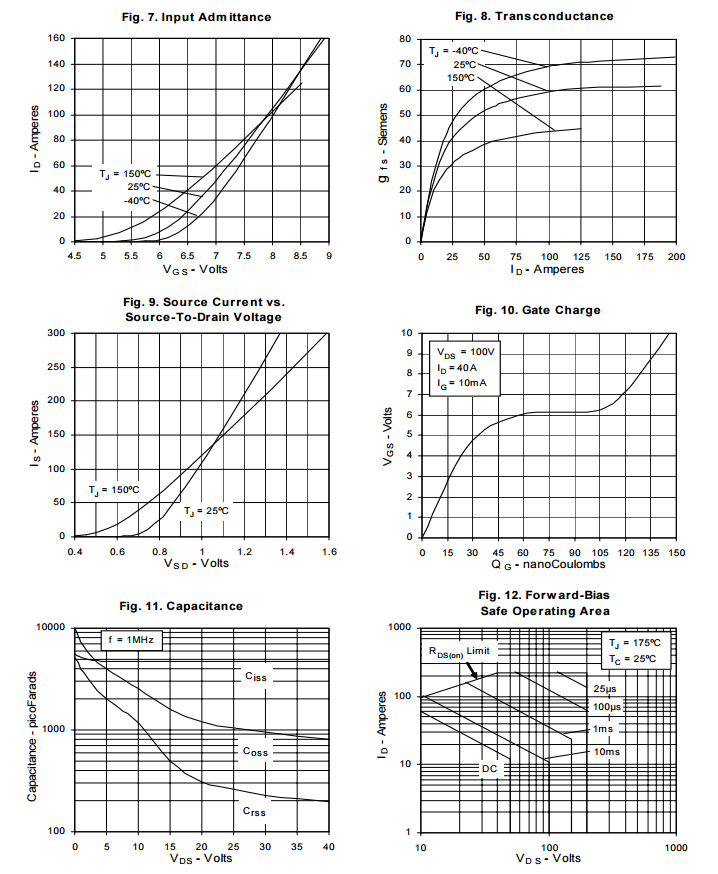

Characteristics Curve:
