GL50N20A8
分享到:

GL50N20A8

Vdss     200 V
Package     TO-220AB
Id     50 A
Rdson(typ)     50 mΩ
Rdson(max)     60 mΩ
产品详情


General Description:

GL50N20A8, the silicon N-channel Enhanced VDMOSFET, is obtained by the self-aligned planar Technology which reduce the conduction loss, improve switching performance and enhance the avalanche energy. The transistor can be used in various power switching circuit for system miniaturization and higher efficiency. The package form is TO-220AB, which accords with the RoHS standard.



Features:

Fast Switching

Low ON Resistance(Rdson60mΩ)

Low Gate Charge (Typical Data:80nC)

Low Reverse transfer capacitances(Typical:70pF)

100% Single Pulse avalanche energy Test



Applications:

Power switch circuit of adaptor and charger


AbsoluteTc=25℃ unless otherwise specified)


Symbol
Parameter
Rating
Units
VDSS a1
Drain-to-Source Voltage
200
V
ID
Continuous Drain Current
50
A

Continuous Drain Current TC=100 °C
40
A
IDMa2
Pulsed Drain Current
200
A
VGS
Gate-to-Source Voltage
±20
V
EAsa2
Single Pulse Avalanche Energy
1200
mJ
dv/dta3
Peak Diode Recovery dv/dt
5.0
V/ns
PD
Power Dissipation
250
W

Derating Factor above 25°C
2.0
W/
TJTstg
Operating Junction and Storage Temperature Range
17555 to 175
TL
Maximum Temperature for Soldering
300


Caution Stresses greater than those in the Absolute Maximum Ratings may cause permanent damage to the device


Thermal Characteristics


Symbol
Parameter
Rating
Units
RθJC
Thermal Resistance, Junction-to-Case
0.2
℃/ W
RθJA
Thermal Resistance, Junction-to-Ambient
45
℃/ W


Electrical Characteristics(Tc= 25℃ unless otherwise specified)


OFF Characteristics






Symbol
Parameter
Test Conditions
Rating
Units





Min.
Typ.
Max.

VDSS
Drain to Source Breakdown Voltage
VGS=0V,ID=250µA
200
--
--
V
ΔBVDSS/ΔTJ
Bvdss Temperature Coefficient
ID=250uA,Reference25
--
0.31
--
V/℃
IDSS
Drain to Source Leakage Current
VDS=200V, VGS=0V,Ta=25
--
--
1.0
µA


VDS=160V, VGS=0V,Ta=125
--
--
200

IGSS(F)
Gate to Source Forward Leakage
VGS=+20V
--
--
100
nA
IGSS(R)
Gate to Source Reverse Leakage
VGS=-20V
--
--
-100
nA




ON Characteristics






Symbol
Parameter
Test Conditions
Rating
Units





Min.
Typ.
Max.

RDS(ON)
Drain-to-Source On-Resistance
VGS=10V,ID=25A
--
50
60
VGS(TH)
Gate Threshold Voltage
VDS=VGS,ID=250µA
2.0
--
4.0
V
gfs
Forward Trans conductance
VDS=15V,ID=20A
--
65
--
S
Pulse width<380μs; duty cycle<2%.









Dynamic Characteristics






Symbol
Parameter
Test Conditions
Rating
Units





Min.
Typ.
Max.

Ciss
Input Capacitance
VGS=0V VDS=25V
f=1.0MHz
--
5000
--
pF
Coss
Output Capacitance

--
215
--

Crss
Reverse Transfer Capacitance

--
70
--




Resistive Switching Characteristics






Symbol
Parameter
Test Conditions
Rating
Units





Min.
Typ.
Max.

td(ON)
Turn-on Delay Time
ID=20A,VDD=100V
VGS=10V,Rg=1.8
--
19
--
ns
tr
Rise Time

--
30
--

td(OFF)
Turn-Off Delay Time

--
68
--

tf
Fall Time

--
25
--

Qg
Total Gate Charge
ID=20A,VDD=100V
VGS=10V
--
80
--
nC
Qgs
Gate to Source Charge

--
18
--

Qgd
Gate to Drain (Miller)Charge

--
18
--




Source-Drain Diode Characteristics






Symbol
Parameter
Test Conditions
Rating
Units





Min.
Typ.
Max.

ISD
Continuous Source Current (Body Diode)

--
--
50
A
ISM
Maximum Pulsed Current (Body Diode)

--
--
200
A
VSD
Diode Forward Voltage
IS=50A,VGS=0V
--
--
1.5
V
trr
Reverse Recovery Time
IS=20A,Tj=25
dIF/dt=100A/μs,VGS=0V
--
200
--
ns
Qrr
Reverse Recovery Charge

--
1.0
--
μC


a1:TJ=+25℃ to +175℃

a2:Repetitive rating: pulse width limited by maximum junction temperature

a3:ISD=40A,di/dt≤100A/us, VDD≤BVDS,TJ=175℃

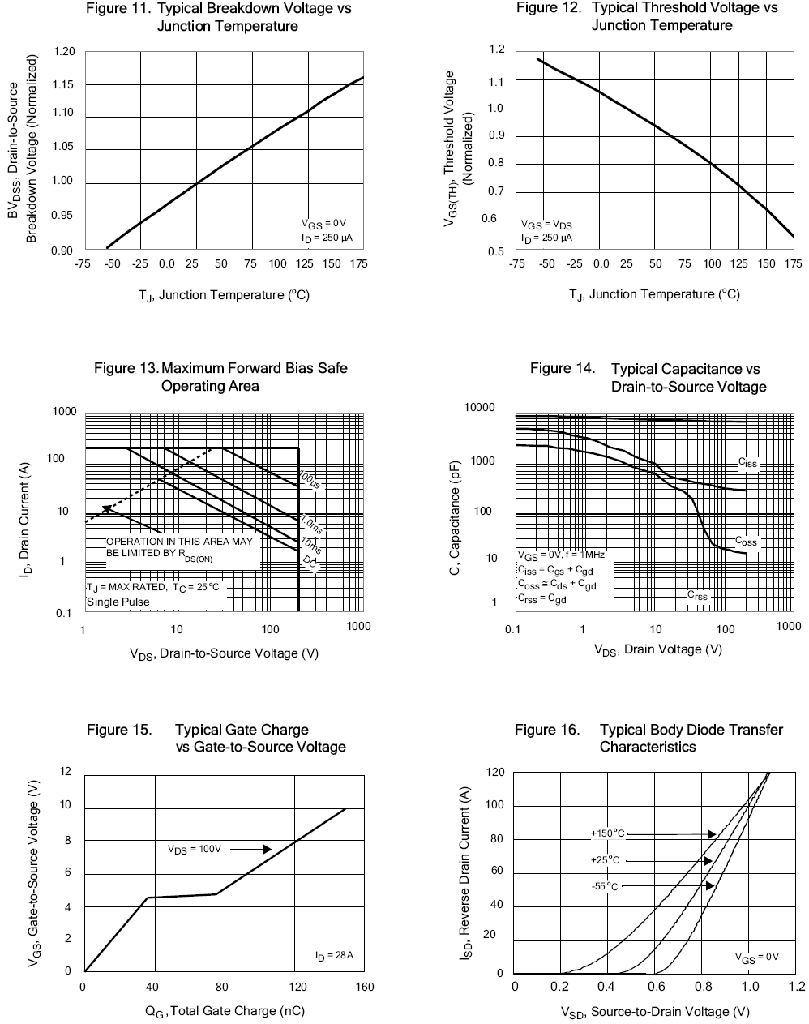

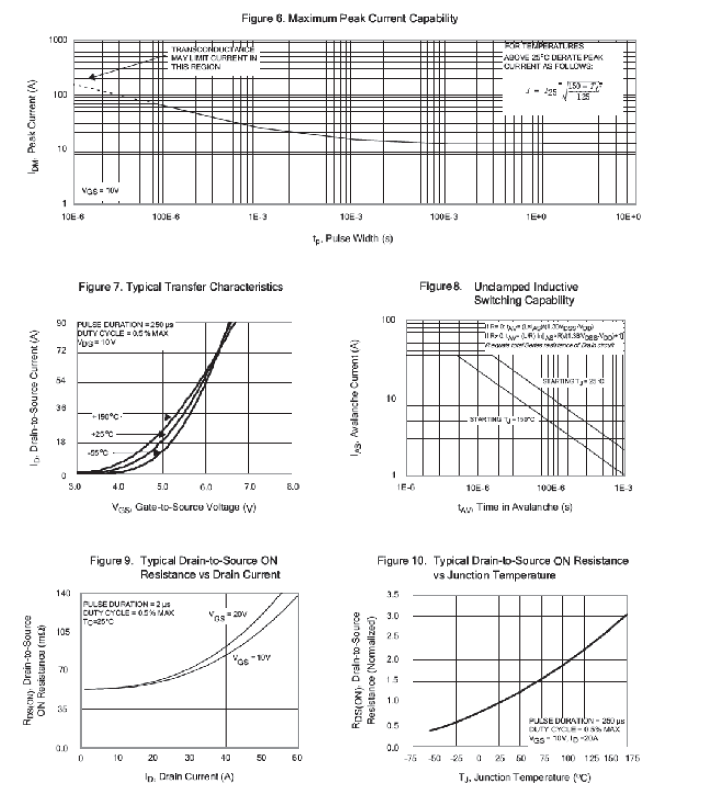

Characteristics Curve:
