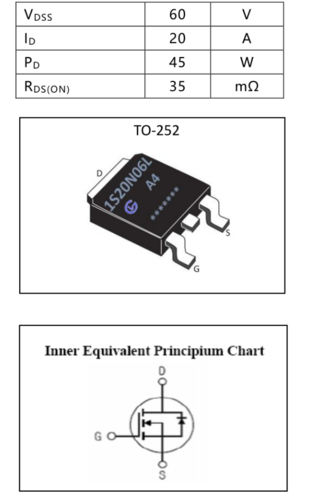

General Description： The GL1S20N06LA4 uses advanced trench technology and design to provide excellent RDS(ON) with low gate charge. It can be used in a wide variety of applications. The package form is TO-252, which accords with the RoHS standard.
Features： Fast Switching Low Gate Charge and Rdson Low Reverse transfer capacitances 100% Single Pulse avalanche energy Test
Applications： Power switching application Hard switched and high frequency circuits Uninterruptible power supply |  |
Absolute（Tc= 25℃ unless otherwise specified）：
Symbol | Parameter | Rating | Units |
VDSS | Drain-to-Source Voltage | 60 | V |
ID | Continuous Drain Current | 20 | A |
| Continuous Drain Current TC = 100 °C | 14 | A |
IDM | Pulsed Drain Current | 60 | A |
VGS | Gate-to-Source Voltage | ±20 | V |
EAS a2 | Single Pulse Avalanche Energy | 72 | mJ |
EAR a1 | Avalanche Energy ,Repetitive | 18 | mJ |
IAR a1 | Avalanche Current | 11 | A |
dv/dt a3 | Peak Diode Recovery dv/dt | 5.0 | V/ns |
PD | Power Dissipation | 45 | W |
TJ，Tstg | Operating Junction and Storage Temperature Range | 175，–55 to 175 | ℃ |
TL | MaximumTemperature for Soldering | 300 | ℃ |
Electrical Characteristics（Tc= 25℃ unless otherwise specified）：
OFF Characteristics |
|
|
|
|
|
|
Symbol | Parameter | Test Conditions | Rating | Units |
|
|
|
|
| Min. | Typ. | Max. |
|
VDSS | Drain to Source Breakdown Voltage | VGS=0V, ID=250µA | 60 | -- | -- | V |
ΔBVDSS/ΔTJ | Bvdss Temperature Coefficient | ID=250uA,Reference25℃ | -- | 0.1 | -- | V/℃ |
IDSS | Drain to Source Leakage Current | VDS=60V, VGS=0V,Ta=25℃ | -- | -- | 1 | µA |
|
| VDS=48V,VGS=0V,Ta=125℃ | -- | -- | 250 |
|
IGSS(F) | Gate to Source Forward Leakage | VGS =+20V | -- | -- | 1 | µA |
IGSS(R) | Gate to Source Reverse Leakage | VGS =-20V | -- | -- | -1 | µA |
ON Characteristics |
|
|
|
|
|
|
Symbol | Parameter | Test Conditions | Rating | Units |
|
|
|
|
| Min. | Typ. | Max. |
|
RDS(ON) | Drain-to-Source On-Resistance | VGS=10V,ID=20A | -- | 27 | 35 | mΩ |
VGS(TH) | Gate Threshold Voltage | VDS=VGS, ID=250µA | 1.0 | 1.7 | 2.5 | V |
Pulse width tp≤380µs,δ≤2% |
|
|
|
|
|
|
Dynamic Characteristics |
|
|
|
|
|
|
Symbol | Parameter | Test Conditions | Rating | Units |
|
|
|
|
| Min. | Typ. | Max. |
|
gfs | Forward Transconductance | VDS=5V, ID=5A | 11 | -- | -- | S |
Ciss | Input Capacitance | VGS=0V VDS=30V f=1.0MHz | -- | 500 | -- | pF |
Coss | Output Capacitance |
| -- | 60 | -- |
|
Crss | Reverse Transfer Capacitance |
| -- | 25 | -- |
|
Resistive Switching Characteristics |
|
|
|
|
|
|
Symbol | Parameter | Test Conditions | Rating | Units |
|
|
|
|
| Min. | Typ. | Max. |
|
td(ON) | Turn-on Delay Time | ID=2A，VDD=30V VGS=10V，RG=3.0Ω | -- | 5 | -- | ns |
tr | Rise Time |
| -- | 2.6 | -- |
|
td(OFF) | Turn-Off Delay Time |
| -- | 2.3 | -- |
|
tf | Fall Time |
| -- | 5.5 | -- |
|
Qg | Total Gate Charge | ID=4.5A，VDD =30V， VGS=10V | -- | 47 | -- | nC |
Qgs | Gate to Source Charge |
| -- | 6 | -- |
|
Qgd | Gate to Drain (“Miller”)Charge |
| -- | 14 | -- |
|
Source-Drain Diode Characteristics |
|
|
|
|
|
|
Symbol | Parameter | Test Conditions | Rating | Units |
|
|
|
|
| Min. | Typ. | Max. |
|
IS | Continuous Source Current (Body Diode) |
| -- | -- | 20 | A |
ISM | Maximum Pulsed Current (Body Diode) |
| -- | -- | 60 | A |
VSD | Diode Forward Voltage | IS=20A,VGS=0V | -- | -- | 1.5 | V |
trr | Reverse Recovery Time | IS=10A,Tj = 25°C dIF/dt=100A/us,VGS=0V | -- | 35 | -- | ns |
Qrr | Reverse Recovery Charge |
| -- | 50 | -- | nC |
Pulse width tp≤380µs,δ≤2% |
|
|
|
|
|
|
Symbol | Parameter | Typ. | Units |
RθJA | Junction-to-Ambient | 3.3 | ℃/W |
a1：Repetitive rating; pulse width limited by maximum junction temperature
a2：EAS condition : Tj=25 ,VDD=℃ 30V,VG=10V,L=0.5mH,Rg=25Ω
a3：ISD =10A,di/dt ≤100A/us,VDD≤BVDS, Start TJ=25℃

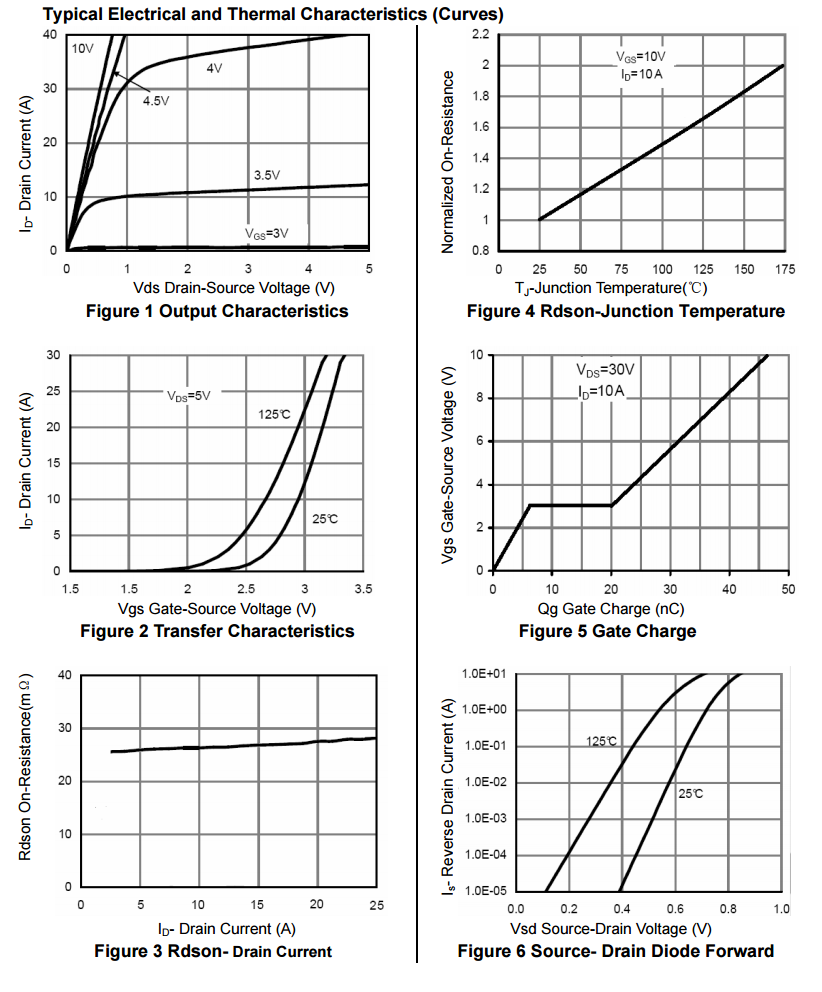

Characteristics Curve：
